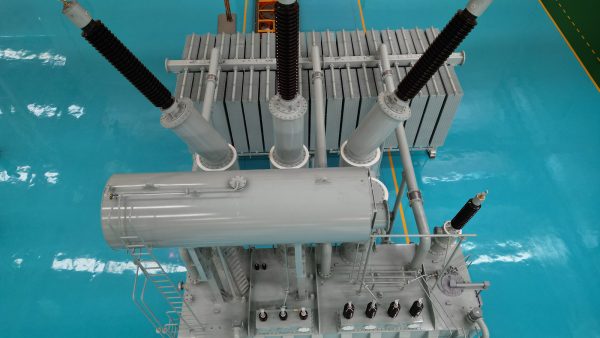

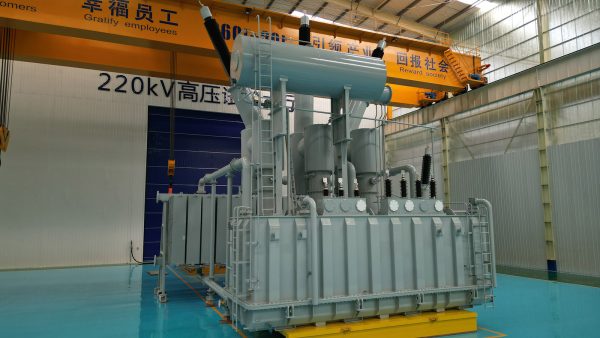

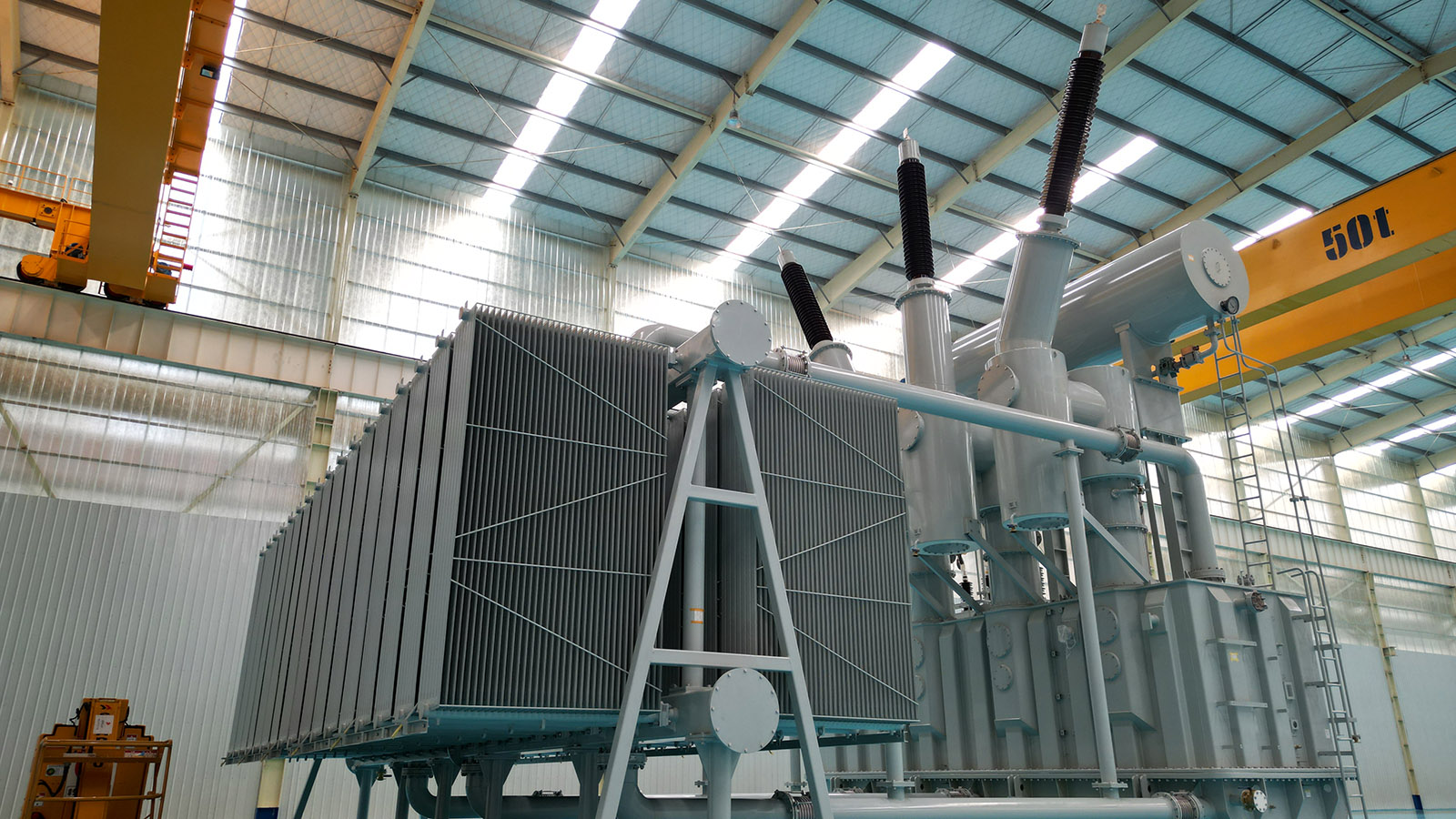

220kV oil immersed power transformer

描述

Oil immersed power transformers meet the requirements of national standards GB/T1094 and GB/T6451. The iron core is manufactured using cold-rolled grain oriented high magnetic conductivity silicon steel sheet technology, the coil is wound with high-strength copper wire, and the oil tank is a bell shaped structure. Depending on the installation environment, high-quality acrylic or chloroprene rubber seals are used, which can be widely used in power plants, power stations, industrial and mining enterprises, substations and other substation systems.

1. Product model:  S(SZ)18; S(SZ)20; S (SZ) 22  type

2. Voltage regulation methods: on load voltage regulation, no-load voltage regulation;

3. Capacity range: 31500-400000kVA

4. Frequency: 50Hz, 60Hz;

5. Number of phases: Three phases;

6. Connection group number: YNd11;

7. Short circuit impedance: User requirements or national standards;

8. Insulation level: Class A;

9. Usage environment: Outdoor;

10. Cooling method: ONAN; ONAF
